Building an 8 bit computer on a breadboard

Following the terrific online course FromNand2Tetris, I decided to commit to Ben Eater’s Youtube Series, in which he builds a fully functioning 8-bit computer from mere logic gates and 74LS series chips, on a breadboard. I first stumbled across this project with a couple of fellow students during my studies in China, but without the time or dedication required for such a project, we unfortunately never made it past the clock module.

Ever since then, I had this project stuck in the back of my head, and being naturally stubborn, I decided to tackle it in January this year.

I have quite the journey behind me.

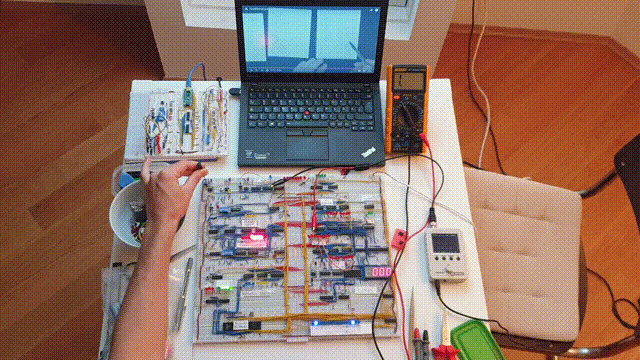

My workspace.

Without a doubt, this constitutes the most demanding project I have undertaken. Not necessarily in terms of time, but certainly in terms of perseverance and determination! While teaching me about electronics and computer architecture, it consolidated my intrinsic motivation for learning new things.

Computer modules

Alright, let’s get to the computer. In essence, it consists of the following modules:

  1. The clock module: This module creates short impulses that feed into the many electronic components that must be kept in sync and is built using several 555-Timers and some basic logic gates.
  2. The “A” and “B” registers: These two 8-bit registers both feed into the ALU and can be addressed separately. Each register is built using two 74LS173s and a 74LS245 for BUS communication.
  3. The Arithmetic Logic Unit (ALU): Built from two 4-bit adders (74LS283), two XOR-Gates (74LS86) and a 74LS245 for BUS communication.
  4. The Flags Register: The Flags Register stores 2 values. The Carry Flag, which goes high when an arithmetic operation overflows, and the Zero Flag, which goes high whenever a calculation yields 0. This register is also built using a 74LS173 Integrated Circuit (IC).
  5. The whopping 16 bytes of Random Access Memory (RAM): The data itself is stored in two 74LS189 RAM chips (with a small inverter fix using 74LS004s). Using some multiplexers (74LS157), one can switch between Programming mode and Running mode. In programming mode, the user can write some program to RAM using some DIP switches.
  6. The Program Counter: A simple counter (74LS161) that connects to the BUS and is used to address RAM to query a program. It can be set using (conditional) jump-instructions, which is what makes the computer Turing-complete.
  7. The Display Unit: The display unit displays numbers up to 255 on a 7-segment display. An electrically erasable programmable read-only memory chip (28C16 EEPROM) is used to control the respective display segments of 4 individual displays. Displaying negative numbers as their two’s complement is also possible.
  8. The Control Unit: The Control Unit decodes every instruction after it has been fetched from memory. It is built using two 28C16 EEPROMs and runs through 5 microcode steps per instruction.

Reflection

I cannot begin to describe how much I learned from building this computer. Previously, I knew little to nothing about electronics. Everything I knew about computer architecture was built upon the great online course FromNand2Tetris. I didn’t understand much about the inner workings of logic gates, registers, the clock module, microcode decoding, tri-state logic, and so many other topics that interface with digital logic and computer architecture. Ben Eater taught me all of that, and I’m incredibly excited that these resources are freely available on the internet. You should browse his website to get an idea of how powerful his content is.

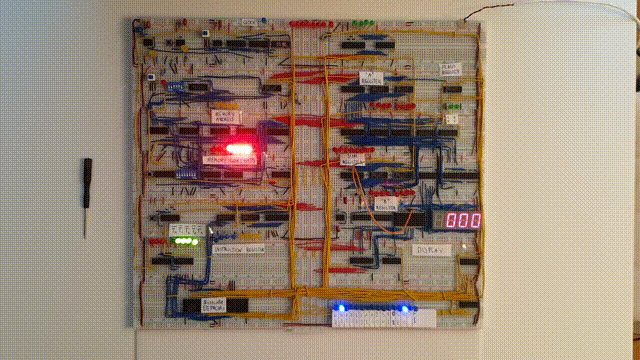

The computer chewing over the multiplication problem 13x8. Here, I'm manually adjusting the clock speed to speed up the calculation. The multiplication is realized using a program written in machine code, as the ALU only supports addition and subtraction.
